rotary screw air compressor

Rotary Screw Air Compressor Sourcing is an independent sourcing partner for dedicated rotary screw air compressor procurement. Share the measured air-demand profile, required working pressure, quantity and US destination so factories can return wholesale quotations on the same flow basis. Adjacent centrifugal compressors, standalone dryers and nitrogen generators stay outside this cluster unless a bidder names them as line items.

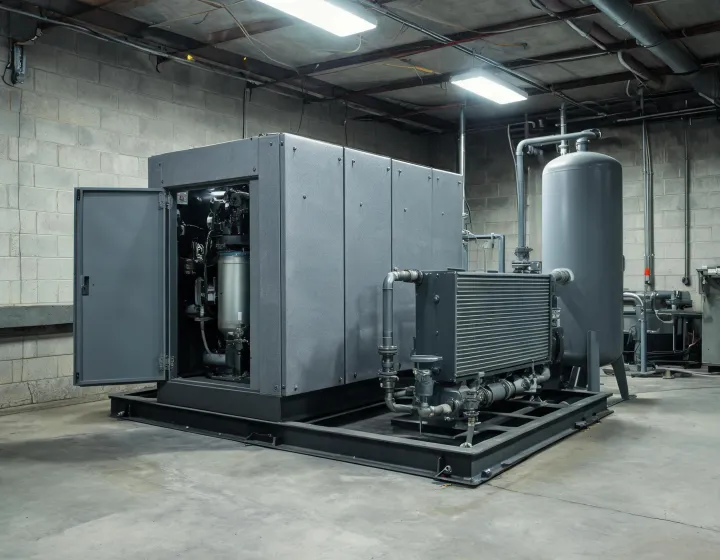

Request Factory Quotes Oil-injected rotary screw air compressor package in a US compressor room with receiver and condensate drains

Site interface register

Connections to confirm
Interface	Buyer input
Electrical	Voltage, phase and frequency for the main motor starter or VSD and any packaged dryer heater. A US three-phase supply is common; the quote nameplate must match the plant bus. State connected load if the feeder is already sized.
Utilities	Cooling-air path or cooling water for the oil cooler and aftercooler, condensate drain routing, and compressed air demand at the tools after distribution losses. Receiver volume and inlet/outlet flange sizes belong on the same sheet.
Controls	Load/unload or variable-speed setpoints, high-temperature and high-pressure alarms, and PLC interface points if the compressor-room PLC must see run/stop and load percent. Protocol names belong in the RFQ only if the buyer already standardized them.

Resolve procurement unknowns

A rotary screw air compressor selected only from motor horsepower can miss delivered flow at the actual working pressure. This band lists what the buyer already knows versus what a manufacturer must still confirm. We do not invent missing plant data or publish a percentage versus “the market.”

Known input: Peak and average compressed air demand, minimum point-of-use working pressure, distribution losses if known, duty cycle including idle periods, three-phase supply, footprint, quantity, destination and requested delivery window. Optional budget with currency and per-unit or whole-order basis may be attached as a buyer preference.
Supplier confirmation: Delivered flow and package power at the same working pressure and reference conditions, control behavior on the stated load profile, included dryer and filtration performance at a named ambient, unloaded energy, service access for oil separator and cooler cleaning, shipping, installation and spare parts lists.

Which operating unknowns decide whether a rotary screw air compressor RFQ is comparable?

Known input: Plant process that consumes the air (packaging, CNC, paint, pneumatic conveying), hours per day, seasonal ambient for any packaged dryer, and whether the purchase replaces an existing skid or is a new pad. Throughput here is usable flow at working pressure, not brochure horsepower.
Supplier confirmation: How load/unload or variable-speed control behaves on that duty cycle, what unloaded energy is included in operating figures, and whether service doors, oil-separator clearance and cooler access fit the named footprint.

Which documents make a rotary screw air compressor brief complete enough to circulate?

What measured air-demand profile and pressure define the compressor selection?

Drawing or process description
Compressor-room layout or P&ID snippet showing the compressor, aftercooler, condensate drains, receiver, optional packaged dryer, bypass and the pressure sample point used at the tools. Note electrical landing, cooling-water or cooling-air path, and footprint limits. A brochure isometric is not a site drawing.
Operating conditions
Peak and average flow, working pressure, duty cycle, ambient temperature, noise dBA target if used for room layout, oil-injected versus oil-free intent, three-phase supply (voltage, phase, frequency) and connected load expectation. Quantity, destination and delivery window belong on the same sheet.

Missing demand profile, working pressure, or quantity and destination keeps quotations non-comparable. Write unknowns as unknowns. Continue with inquiry options or the dryer-and-condensate article.

Which responsibilities remain with the equipment supplier and buyer?

The quoting manufacturer owns screw-element design, oil circuit or oil-free air-end selection, and the documents attached to its offer. The buyer owns demand measurement, working-pressure target, electrical landing and installation geometry. Rotary Screw Air Compressor Sourcing coordinates comparable factory quotes; it does not install, commission or certify a plant layout.

State whether this rotary screw air compressor replaces an existing skid

Discuss Your Requirements

Include with your enquiry

Existing process

If a package already sits on the pad, list remaining pipe flanges, electrical disconnect, cooler air path and whether the receiver stays. A new pad has fewer constraints but still needs footprint and service clearance.

Replacement requirement: match or beat delivered flow at the same working pressure without assuming the largest motor is the lowest cost per usable unit of air.
